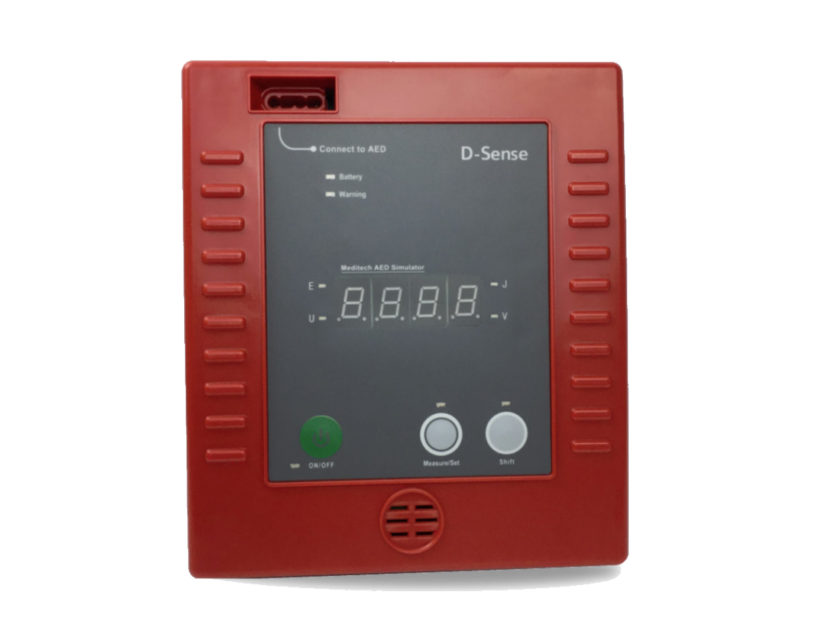

D-Sense

The accuracy of its performance parameters related to the safety of patients, must be through the corresponding detection equipment AED production of the performance parameters of the test and regular performance check.

Meditech D-Sense automated external defibrillator analyzer can simulate a variety of normal and abnormal ECG signals for defibrillator testing, test the ability of the defibrillator to analyze ECG signals, and display the defibrillator primary discharge energy and energy via the LED digital tube Discharge voltage values, the selection of ECG signals for different tests, and the display of voltage display or primary discharge energy are achieved by key operation. The overall operation of the instrument is simple and convenient.

Price: 330 USD


Product Features

Safe and effective operation
Large LED display
Compact and Easy to Use
Battery Operation
Simulate five type of waveforms
Ideal for All AEDs


Product Specifications

Internal Test load:    Ohms ± 1%
Pulse Width:     ms

Energy
Range: 2 – 250 Joules
Resolution:    Joule
Accuracy: ± 2%  Reading ± 2 Joules

Waveform Simulation:
VFIB  - ventricular fibrillation
VTAC - ventricular tachycardia  @ 140 bpm
NSR - normal sinus rhythm @ 90 BPM

Display:  4 Digit    inch LED display

Power:   LiMnO2    12-Volt

Weight:  1 Kg

Dimensions:  256x220x(L:65 H:80)mm





Related Accessories

Standard:

Connector  (AED-Dsense) .... 1Pcs
Battery   ................................ 1Pcs
Case  .................................... 1Pcs
Cleaning Cloth  ..................... 1Pcs
