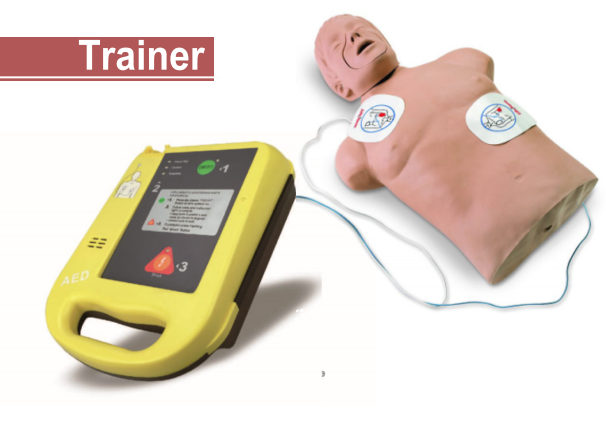

Defi 5T Trainer

The DEFI 5T Trainer is a training tool for preparing emergency responders to use the AED defibrillator to treat a victim of sudden cardiac arrest.
The Trainer provides realistic simulation of the defibrillator without actually charging or discharging electrical energy. Voice prompts, simulated energy delivery, pauses for CPR, Training Pads, and the functional system status indicator all accurately mimic the operation of the defibrillator and provide a realistic demonstration.


 Comes with remote control for the Trainer provides the Instructor with significant control over the  configuration of the Trainer.

The remote control communicates with the Trainer via an IR window located next to the PADs connector. A status indicator LED is located next to the IR window, and it will flash to indicate that a
correct command has been received. The status indicator LED will flash continuously when a scenario has been paused. Refer to the diagram and descriptions listed below

Price: 130 USD

Product Features

Nine different scenarios are available.
Multiple language selections are available.
Handhold Infra-red remote control allows instructors to change training sessions.

Special Features

Voice prompts identical to those in the defibrillator.
LED prompts identical to those in the defibrillator.
Remote control for instructor to use.




Product Specifications


Batteries (Trainer) CR123A-4x2 12V d.c. 2.8Ah
Battery life (Trainer) at least 150 hours
Battery (remote control) 3V Lithium (CR2025)
Battery life (remote control) at least 1 year
Number of training scenarios 9
Storage temperature without batteries -30°C to 70°C
Operating temperature 0°C to 50°C
Weight with batteries 1.0 kg
Dimensions 303 x 216 x 89 mm


The Standard and Level of Electromagnetic Compatibility

Category Standard Level
Radiated Emissions EN55011 CISPR 11 B
ESD EN61000-4-2 8KV air 6KV contact
Radiated Susceptibility EN61000-4-3 10 V/m (20 V/m
EN60601-2-4)






Related Accessories

Standard:

AED trainer Pad      .................... 1Pcs
Battery   ...................................... 1Pcs
Case  .......................................... 1Pcs
Remote Control  ..........................1Pcs
Cleaning Cloth  ........................... 1Pcs

Options:

Cabinet (5 Models available)
