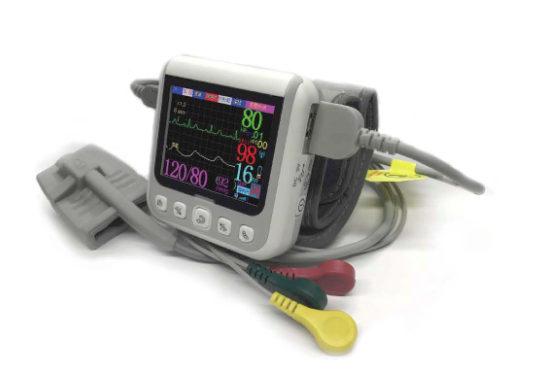

MD09x

MD09X wrist multi-parameters monitor and individual parameter patient monitor. The smart multi-parameters monitor with a small size can simultaneously measure the ECG, Heart rate, Respiration, Blood pressure, SpO2 and Pulse rate.
The individual parameter monitor can respectively measure the Blood pressure, Sp02 or the both.

MD09x Workable with smart device app (Android and iOs)







Price: 340 USD


Product Features

2.4 inch TFT color screen dis-player. Resolution: 320*240
Display waveform:  2 channels waveform of ECG respiration blood pressure and SpO2 can be both displayed
ECG: With the function of abnormal data store daily data store and trend display
ECG Cable: 3 leads .10 Leads
NIBP: Manual measurement. Automatically identify the adult and child. System can adjust the maximal pressure for adult and child. The blood pressure waveform can be displayed in real-time
SpO2: Anti-low per-fusion and motion artifact
Trend display: Display the trend of ECG blood pressure SpO2 ST segments premature and respiration in 96 hours
Alarm modes: Visible alarming reminder and speaking voice alarming reminder
Wireless:  Bluetooth 4.0
E-Manual: embedded e-manual for self reading
workable with smart devices (Android &iOs)




Options
Bluetooth printer



Product Specifications

ECG
ECG waveform gain:              0.5 mm / mV,1.0 mm / mV, 2.0 mm / mV
Scanning speed :                   7.5mm / s 15mm / s
Heart rate and alarm range :
Adult:                                    30 bpm ~250 bpm (beats / min)
Precision of ECG:                 ±5%
Resolution:                           1 bpm (Times/Minute)
Sensitivity:                            >200uV (Peak-to-Peak Value)
Trigger level threshold:          200nV (Lead II)
Resistance of differential input:     >5MΩ
Common-mode rejection ratio :     ≥ 90 dB
Electrode polarization voltage range: 300mV
Leakage current:                          <10uA
Input signal range:                         ±5mV
ECG abnormal types:Tachycardia Bradycardia VPC Bigeminal rhythm Trigeminal rhythm RonT VTAC Escape Beat and Sinus arrest.
Alarm:The voice audible alarm and screen visual alarm display dual alarm under review.
Heart rate alarm range:         30~250 bpm
Alarm Mute:                           Less than 10 seconds
Alarm sound pressure:          45 to 65 db
Frequency response :
            Flter :                           0.67 Hz ~ 40Hz
            Guardianship :             0.05 Hz~40Hz
            Detection:                    0.05 Hz~100Hz
Calibration signal :                   6 mm / mV
ST segment measurement:
Measured range:                    -2.0mV~+2.0mV
Precise:                                  -0.8mV~+0.8mV; ±0.02mV or±10%
Renew period:                         10s
Pacing pulse suppression :
            Range:                        ± 2mV to 500Mv
            Width:                         0.1ms ~ 2ms
           Rise time:                    10us ~ 100 μs
Inhibition of the pacing pulse detector for fast ECG signal :   2.5V/s
Can inhibit the T-wave amplitude: > 5mV

Noninvasive blood pressure (NIBP)
Measurement:                     Oscillometric pressure when the blood pressure measurement.
Pressurized automatic calibration zero
Measuring range :                 30mmHg~280mmHg
Measurement accuracy :       ±5mmHgor ±5%
Maximum cuff pressure:        Cuff pressure does not exceed 300 mmHg
                                              The cuff pressure at 15 mmHg or more time is not more than 3min.
Overvoltage protection:          Yes
Alarm:                                  Systolic / diastolic alarm error of ± 2 mmHg
                                               Atrial premature function
Measuring wrist Week            135mm ~ 215mm

Oxygen saturation (SpO2)
Measuring range :               40% ~ 99%
Measurement accuracy:        90% ~ 99% Tolerance ± 2%
                                               70% ~ 89% Tolerance ± 4%
                                              40% ~ 69% Tolerance ± 6%
Alarm range :                      50% ~ 99%

Pulse rate
Measuring range  :             30 Beats / min ~ 80 Beats / min ± 2
                                              80 Beats / min ~150 Beats / min ± 4
                                             150 Beats / min ~240 Beats / min ± 5
Measurement accuracy:    ± 5%

Resist electric shock :         CF type
Build-in :                                3.7V 1000mh
Power adapter:                   5V/1A 2W battery charger:
Power                                    2W
Type :                                    Non-AP / APG type  Do not prevent inlet device
Work environment:
Temperature:                         5 ℃~40 ℃
Humidity:                               15% ~80%
Atmospheric pressure:           80kPa ~105kPa
Storage environment:
Temperature :                      -20 ℃ ~55℃
Humidity :                            10%~90%
Atmospheric pressure :       50.0 kPa ~106.0kPa

Size and Weight
Dimensions :                    7cm (W) × 7cm (H) ×2.6cm (D) (does not include a wrist strap)
Net Weight :                     130g
Gross Weight                      0.5Kg

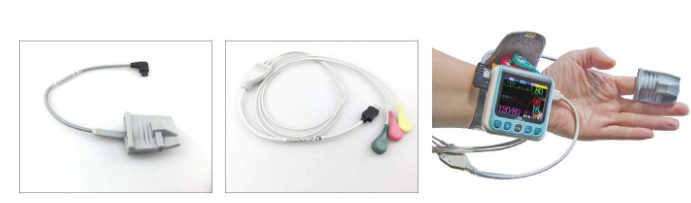

Related Accessories

Standard:

ECG Cable (3 Leads) ...... 1Pcs
SpO2 probe (Soft tip)   ..... 1Pcs
Power Adapter    .............. 1Pcs
Cleaning Cloth  ................ 1Pcs

Options:

ECG Cable (10 Leads)
