Sonotech 5w

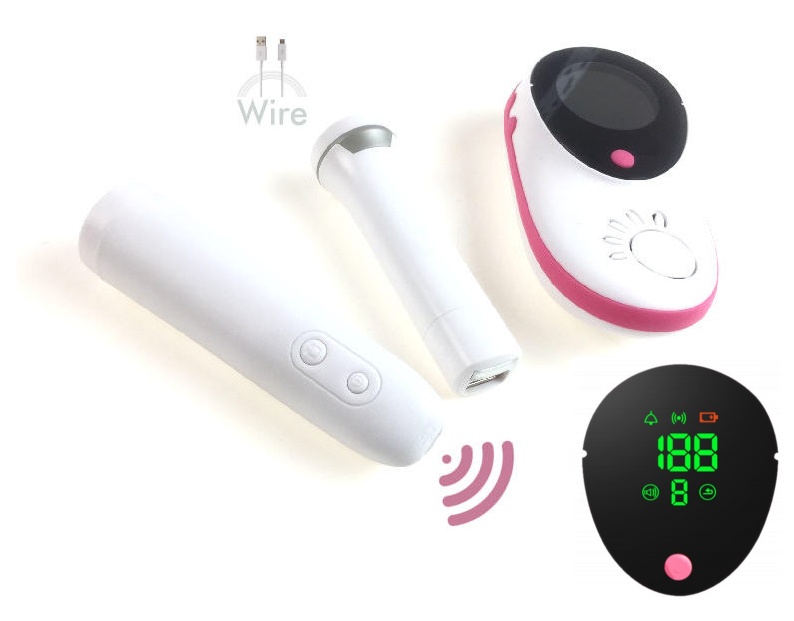

Sonotech 5 Wired probe fetal doppler
Sonotech 5W Wireless probe fetal doppler (20-30 m)


ecografia y doppler fetal,fetal doppler echo,fetal doppler for iphone

 Sonotech 5 Probe :
 Frequancy 2.5 Mhz
 Wired probe easy to connectable by socket (in probe and main  device")
 Water proof IPX4

 Sonotech 5W Probe :
 Frequancy 2.5 Mhz
 Wireless probe  20m (between probe and main device")
 Built in rechargable battery
 Record function can be done by probe
 Water proof IPX4


Price: 32 USD
Buy 05:  - 10%  OFF

Buy 07:   - 15%  OFF
Buy 10:   - 20% OFF


Product Features

fetal doppler with High sensitivity and Easy to operate

Built in memory for data storage
Alarm function for ubnormal range
LCD with White Digits on a Black Background
+30 Hrs Operation on 3 AAA Alkaline Batteries
Built In Speaker (=1.8W) with buttom Volume Control
Auto Power Off on No Signal (2 min) Function



Indicator for :
Signal level (between wirless probe and the doppler)
Alarm for  ubnormal FHR range
Volume (0-6)
Battery capacity
Storage number (0-9)




wireless fetal Dopplerunborn baby`s hear recorderultrasonic pocket doppler


wireless fetal DopplerSonotech5baby doppler

como funciona o doppler fetalcomo usar o fetal dopplerecografia fetal o doppler fetalecografia obstetrica y doppler fetal





Product Specifications


Classification:
Anti-electroshock Type: Internally powered equipment
Anti-electroshock Degree: Type B equipment
Harmful Liquid Proof Degree: IP×4
Suitable Using Range: Suitable for use after the 16th week of pregnancy

FHR Performance:
FHR Measuring Range:50-210BPM(Beat per minute) Resolution:1BPM
Accuracy: ±2BPM Probe:
Working Frequency:2.5MHz±10%
Output power: <10mW/cm²
Spatial-peak temporal peak acoustic pressure: <0.1Mpa
Ovearll Sensitivity: ≥90dB

Physical Characteristic:
Main device: 132mm(L)×68mm(W)×34mm(H)
Probe:
Sonotech 5     models:31mm(Ø)×103mm(H)
Sonotech 5W models:32mm(Ø)×120mm(H)
LCD Display:38mm(Ø)
Weight: About 200g (including batteries) Environment:

Working environment:
Temperature: + 5°C~ + 40°C Humidity:≤80%
Atmospheric Pressure: 70kpa ~106kpa
Transport and Storage:
Temperature:-40℃~ + 55℃ Humidity:≤90%
Atmospheric Pressure: 50kPa ~106kpa

Power:
Host Internal:1.5V Battery×3(Size:AAA) Probe
Internal:3.7V Lithium polymer battery
External:5V USB equipment

power supply.
AC/DC Adaptor:
Input:AC100~240V50Hz/60Hz0.2A MAX.
Output:DC 5V1000mA5VA.



Related Accessories

Standard:

USB Wire      ................................... 1Pcs
         Use  for
         Sonotech 5 : to connect the probe and the fetal doppler.
         Sonotech 5W : to charge the wireless probe.
2.5Mhz Fetal doppler probe  ........... 1Pcs
Cleaning Cloth  ............................... 1Pcs
Audio stereo Cable   ....................... 1Pcs

Options:

Headphone
External mini Speakers
Carry Case
Audio smart device Cable (Android .iOs)
AAA Battery
Rechargable Battery
Charger (Panasonic)
