Product Features
Color monitor (Pixels: 160*128 256K color) 1.3"
Built-in memory stores up to 24 hours of downloadable data (USB cable included).

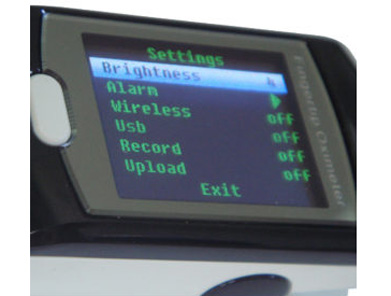

4 different display modes
Adjustable brightness settings.
Built-in switchable alarms for SpO2 and pulse rate.
Pulse histogram and SpO2 wave display
USB interface ensures convey of SpO2 data (Wireless option)
Easy to use & high accuracy
Small in size and easy to carry and Light weight of 45g batteries included
Battery voltage indication: color graph
Auto power-off after 4 seconds without signal
3.7V Rechargeable Lithium Polymer Battery (Charger: USB and AC charger)
Synchronous display on the oximeter and computer
Inner flash memory for more than 30 hours data storage

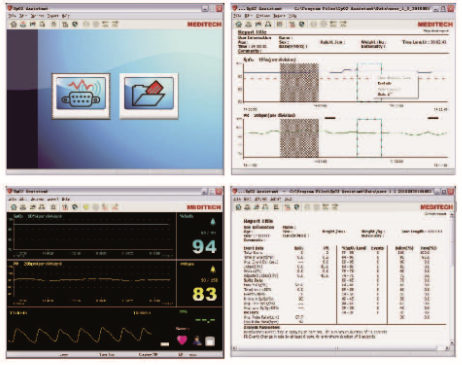

Advanced software for sleep study and monitoring
Power consumption: less than 20mA (wireless and alarm not work).
Particularly suitable for persons with:
Heart failure
Bronchial asthma
Chronic obstructive pulmonary diseases
Sleep apnoea
* Meditech Oximeter Software (OxySoftTM ) is a fingertip oximeter data management device delivering remote management of algorithum vital sign and software update capabilities. The meditech monitoring device allows patients along with clinicians to more easily monitor their vital signs.
Meditech oximeters(Some models) monitor the exchange of secure patient information transfer. Patients will be able to go about their daily activities and send data through the USB cable to the computer.
The developement of this product is vital to enhancing the tele-medicine market which gives the benifit to collect data and promote noninvasive monitoring devices used in numerous medical settings around the world – including the hosptal medical clinics and EMS.
More details please click (OxySoftTM )
Product Specifications
The Pulse Oxygen Saturation (%SpO2): 2-digit digital OLED display
Pulse Rate(bpm): 3-digit digital OLED display
Pulse Intensity: (bar-graph) bar-graph OLED display
SpO2 Parameter Specification
Measuring range: 0%～100% (the resolution is 1%).
Accuracy : 70%～100%:±2% Below 70% unspecified.
Average value: Calculate the Average value in every 4 measure value.
The deviation between average value and true value does not exceed 1%.
Measuring range: 30bpm～250bpm (the resolution is 1bpm)
Accuracy: ±2bpm or ±2% (select larger)
Average pulse rate: Moving calculate the Average pulse rate every 4 cardio-beats cycle.
The deviation between average value and true value does not exceed 1%
Safety Type: Interior BatteryBF Type
Pulse Intensity
Range: Continuous bar-graph display the higher display indicate the stronger pulse.
Battery Requirement
Voltage 3.7 rechargeable lithium battery × 1
Battery working life
Charge and discharge no less than 500 times.
Power Adapter
Input Voltage 100 to 240 VAC 50/60 Hz
Output voltage 5 VDC
Output current 1000mA
Oximeter Probe Wavelength:660nm 880nm
Dimensions and Weight
Dimensions 57(L) × 32(W) × 30 (H) mm
Weight About 50g (with the lithium battery)
Related Accessories
Standards:
USB Cable ....................... 1Pcs
USB Charger ................... 1Pcs
Nylon Case .................... 1Pcs
Cleaning Cloth ................ 1Pcs
Options:
SpO2 Cable (Adult Soft shell sensor)
Nylon Case
Hard case
