Product Features

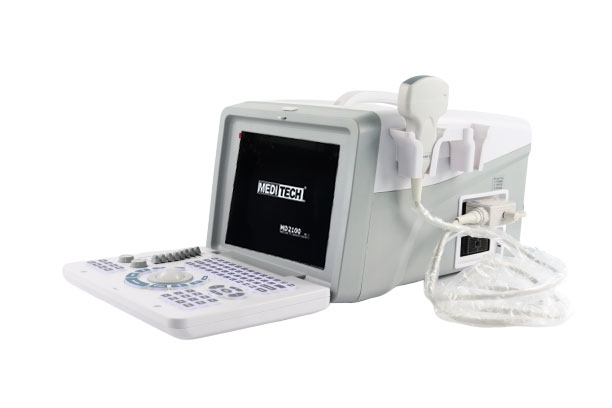

Portable 2D B/W Ultrasound scanner
10 inch CRT Screen with clear image quality
Advanced transducer technology
Digital Beam Forming
Multiple imaging modes
Patented innovative design
Real-time dynamic aperture
2 USB port upgrated and expandable printer function
SVGA video output and PAL video output easy connect printer
Product Specifications
-
Monitor: 10 inch SVGA HR display. Grey scale: 256 levels.
-
Display mode: B B/B 4B B+M and M
-
Magnification: ×0.8 ×1.0 ×1.2 (Depth hoist display) and × 1.5，×1 .8 ×2.0 (Depth hoist display)
-
Dynamic range: 64~96dB adjustable
-
Focusing: Four sections of dynamic electronic focusing may be elected.
-
Pre-processes: changeable aperture dynamic changes of the marks dynamic filter and edge enhancement etc.
-
Pro-processes: 8 kind of γadjustments16 kinds of color process line correlation frame correlation and linear interpolation etc.
-
Frequency conversion: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/6.5MHz/7MHz(Matching 6.5MHZ cavity probe and 7 MHz High-frequency linear array probe).
-
Calculation: distance perimeter area heart rate pregnancy week (BPD GS CRL FL AC) and anticipated delivery date.
-
Note: name serial numbers of case history gender age 16 body marks (with probe) full-screen character real-time clock
-
Puncture guide: The puncture guide line can be displayed under B mode.
-
Gain control: The total gain near field and far field can be adjusted successively.
-
Image polarity: left/right black/white and up/down reverse.
-
Fractionated gain: 2 time of enlargements
-
Movie memory: 256 pictures can be memorized successively when the real-time is displayed.
-
Image memory: 128 pictures Permanent storage.
-
Image review: /images can be reviewed successively and checked one by one.
-
Output interface: 2 groups of SVGA video output may mate with SVGA color monitor. And 2 groups of PAL video output may mate with PAL monitor video /image recording instrument and /image workshop etc. 1 group of USB Connection (Optional).
Main Technical Specifications
Probe: 80Array element R60
Probe frequency: 3.5MHz
Scanning depth: ≥180mm
Lateral resolution: ≤2mm(depth≤80mm) ≤3mm(80< depth≤130mm)
Axial: ≤1mm(depth≤80mm) ≤2mm(80< depth≤130mm)
Dead zone： ≤3 mm。
Geometry position precision: lateral≤5% axial≤5%
Monitor: 10 inch SVGA high resolution monitor（may choose PAL monitor）
frames cine loops：256
Power supply scope： AC 220V±22V 50Hz
Input: ≤ 300VA
Successive working hours：≥8h
G/W: 10KGs
N/W: 7KGs
Packing size: 480x380x410mm
Related Accessories
Standard:
Multi frequency convex probe ...... 1Pcs
Power Cable ............................... 1Pcs
Cleaning Cloth ............................ 1Pcs
Options:
7.5MHz high-frequency linear array probe
6.5MHz intra-cavity (trans-vaginal) probe
7.5MHz rectal probe
3.5MHz micro-convex probe
B/W Laser printer
Footswitch
Battery
Trolley
Ultrasonic work-station
Carrying Bag
