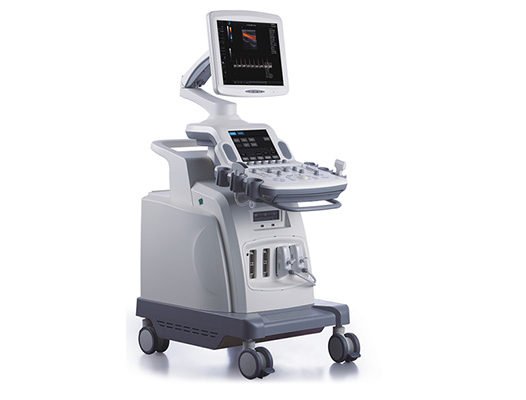

Color Ultrasound

iSonic

iSonic Wide band multifrequency,Imaging Processing ,Imaging optimization and Compound enhance technology,touch pad and keyboard,high quality images and sensitivity

Pulse Wave Doppler & HPRF” (CW Doppler for cardiac applies optional) Function

“Color/Power/Directional Power Doppler Flow Imaging”

Probes Made by NDK JAPAN

Ultrasound probe isonic

Price: Contact Us

Product Features

17" LCD high brightness high resolution wide view angle
iSonic Wide band multi frequency Imaging Processing Imaging optimization
195 elements ZIP260 connector
Hard Disk (500G)
Control panel (exclude touch pad)
Operating Mode: 2B 4B B/M M B/C B/C/D B/D PW velocity
power (direction) histogram Triplex/Duplex

Imaging Processing Technology
Imaging optimization technology
Compound enhance technology
Speckle reduction
Multi beam parallel processing technology
Color coding
Doppler frame correlation
Wall filter
Tissue Harmonic

File management
Hard disk storage
Cine loop
DVD-ROM
USB
RS232
DICOM 3.0
Intranet
Parallel printing port

Imaging Modes

Overview
B Dual B Quad B M
Color Dual Color
Simultaneous 2D/Color Compound
PW Duplex/Triplex
CFM PD Directional PD CD
Freehand 3D
4D
Panoramic

Measurements Specifications
Obstetrical Report
Amniotic Fluid Index (AFI)
BPD/OFD FL/AC FL/BPD and HC/AC ratio
Estimate Weight Of Fetus
Gestational Age
Expected Date Of Confinement (LMP/BBT)
Fetal Biophysical Score
Fetus Growth Curve

Gynecology
Uterus Ovary Follicle
Gynecology Report

Urology
Kidney Bladder Residual Urine Volume
Urology Report

Andrology
Prostate Testis
Prostate Specific Antigen (PSA)
Prostate Specific Antigen Density (PSAD)
Andrology report

Orthopedic
Left and Right Hip Joint

Peripheral Vascular
Area Stenosis
Vessel Diameter Stenosis
Peripheral Vascular Report

Small Parts
Thyroid Mammary Gland Nodule
Small Parts Report

Multiple Births
Measurement Of Multiple Births

Cardiac
Heart Rate
Blood Flow Rate
Left Ventricle
Aorta
Mitral Valve
Ventricle (left/right)
Area Stenosis (% area Sten)
Vascular Diameter Stenosis (% Diam Sten)
Body Surface Area (BSA)

Comes with

Mobile trolley

Multi frequency convex probe

Multi frequency linear probe

Optional modules

CW Doppler and “Free Xros™ Imaging “(for cardiac applies) module

Smart3D module (for 3 dimensions with 2D standard convex probe)

“iScape View” module

DICOM 3.0 module

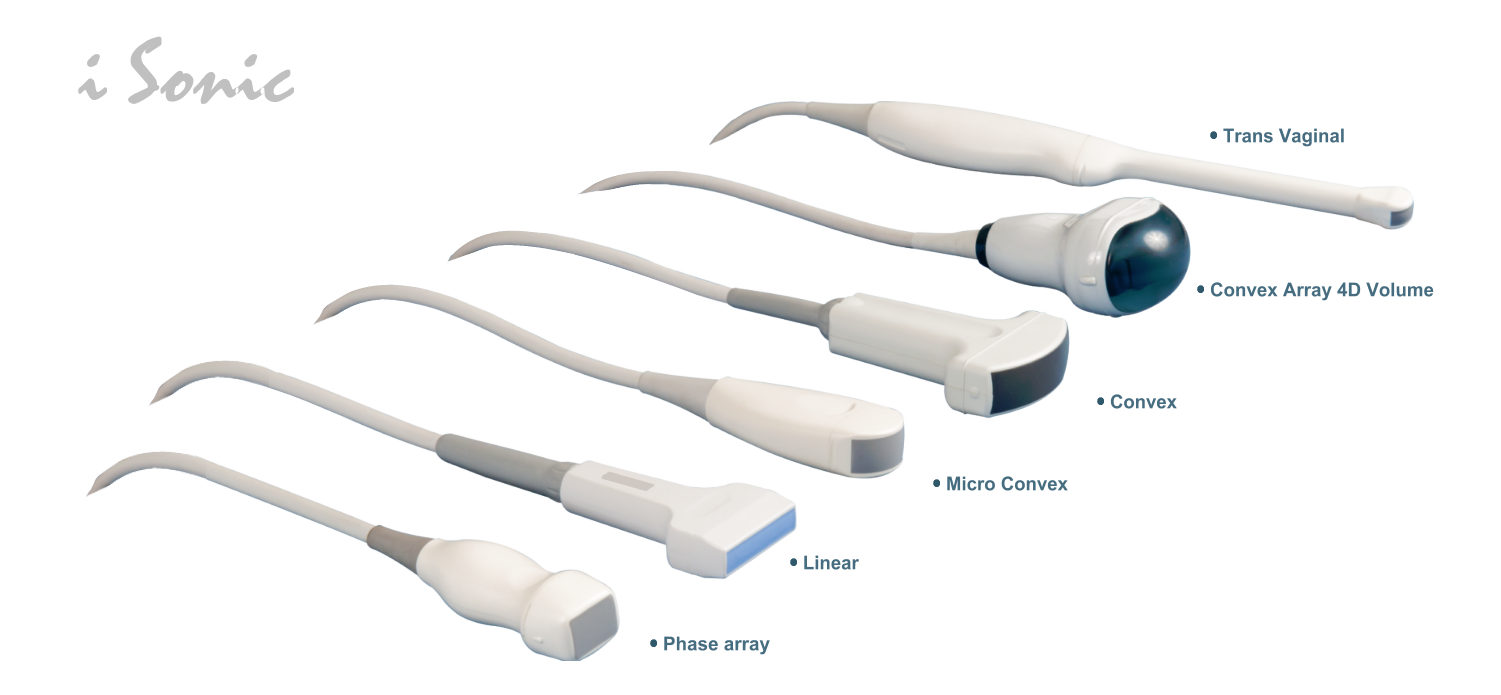

Optional probes

Micro-convex array Transvaginal probe

Micro-convex probe

Linear probe

Intdo rectal linear probe

Phased array probe 2P2 (for cardiac applies)

Optional Accessories

Footswitch by USB port

Biopsy guide for convex probe

Biopsy guide for micro-convex probe

Biopsy guide for linear probe

Biopsy guide for micro-convex TV probe

Biopsy guide for intrarectal linear probe

Product Specifications

Software Specifications:

Languages

English Russian Spanish Polish Turkish Vietnamese Simplified Chinese

User Interface Cine Playback Multiple Arrows
Configurable Worksheets
Exam Review :Pictograms (Body Marks) System Setup Menu Programmable Annotations

Max Onscreen Measurements
Distance:      27
Area:             3

Measurement Tools
B-Mode
Distance: Point to Point Angle:
Vector Angle Area/Perimeter:    Ellipse Trace Volume Three – Axis
M-Mode Time Distance Heart Rate
Valve Velocity

Doppler-Mode
Velocity
Time
Heart Rate
Acceleration
Common Measurement: PS ED TAMAX RI PPG Trace:    PS ED TAMAX RI PPG

Imaging Modes

Overview

B Dual B Quad B M Color Dual Color
Simultaneous 2D/Color Compound

PW Duplex/Triplex

CFM PD Directional PD CD Freehand 3D
4D Panoramic

Combined Modes

Dual B Quad B B/M B B/CB/C/PW

B-Mode

Maps:                             17
Focus Count:                 Max. 4
Gain: 0~255
TGC: 8
Sliders Dynamic Range: 0~150dB
Depth:                            Max. 30cm
Acoustic Power: 0 ~ (-15) dB
Chroma:                        0~7
Grayscale Levels:         256
frame Rate:                  Max.100Hz
Max. Line Density:        512
Persistence/ frame Average: Up to 7
Top/Bottom/Left/Right Reverse
Speckle Reduction

M-Mode

Maps:                               16
Chroma: 16
Sweep Speed: 3
Gain:                                 0~255
Distance:                          Point-to-Point
Max Steer Angle: 15°
Diameter Reduction: Point-to-Point
Heart Rate/Time/Distance/Slope
Side-by-Side/Bottom

Color Mode

Gain:                                 0~255
Color Maps: 0~6
Doppler Steer Angles:      5 Steps
PRF: 1.8 kHz~13.2 kHz
Wall Filter: 0~3
Max. Steer Angle:             ±10°
Doppler Multi-Frequency: 2MHz~10MHz
Priority: 0~250
Line Density Max: 256 Lines
Persistence/frame Average: 0~7
baseline/Invert/Color ROI/M-Mode

PW Mode

Gain: 0~255
Sweep Speed: 5
Doppler Steer Angles: 5 Steps
Maps:                                 3
Max Steer Angle: ±10° Spectrum Filter (Edge):    0~3
Audio: 0~255
Correction Angle: 80°/-80°
Doppler Multi-Frequency: 2MHz~10MHz
Chroma: 0~7

Hardware Specifications:

LCD Monitor Size (Diagonal):	15 inch	Transducers	4D Volume Probe Frequency: Central 4.0 MHz
Contrast Ratio: Resolution: Brightness: Color Depth: Rotate Angle: Grey Levels:	800:1 1024×768 pixels 230 cd/m2 24bit ± 90° 256	Convex Array Probe Frequency: Central 3.5 MHz Min. 2.0 MHz Max. 5.5 MHz Pitch: 0.516 mm Radius: 60 mm	Min. 2.0 MHz Max. 5.5 MHz Made by NDK Japan
Touch Screen Size (Diagonal):	10”	Linear Array Probe:
Contrast Ratio: Resolution: Brightness: Grey Levels: Input Signal:	600:1 800×600 pixels 250 cd/m2 64 DVI	Frequency: Central 7.5 MHz Min. 6.0 MHz Max. 12.0 MHz Pitch: 0.352 mm Radius: N/A

embedded Computer

CPU: Intel E4300 (Minimum)

Hard Drive (Patient) Data: ≥ 500 GB

embedded Speakers Impedance: 4Ω

Power: 5 W

UPS (Optional)

Related Accessories

Standard:

Mobile trolley

Multi frequency convex probe ...... 1Pcs

Multi frequency linear probe ........ 1Pcs

Power Cable ............................... 1Pcs
Cleaning Cloth ............................ 1Pcs

Options:

CW Doppler and “Free Xros™ Imaging “(for cardiac applies) module

Smart3D module (for 3 dimensions with 2D standard convex probe)

“iScape View” module

DICOM 3.0 module

Footswitch by USB port

Probes:
Micro-convex array Transvaginal Probe

Micro-convex Probe

Linear Probe
Volume Probe

Intdo rectal linear probe

Phased array probe 2P2 (for cardiac applies)

Biopsy guide:
Biopsy guide for convex probe

Biopsy guide for micro-convex probe

Biopsy guide for linear probe

Biopsy guide for micro-convex TV probe

Biopsy guide for intrarectal linear probe

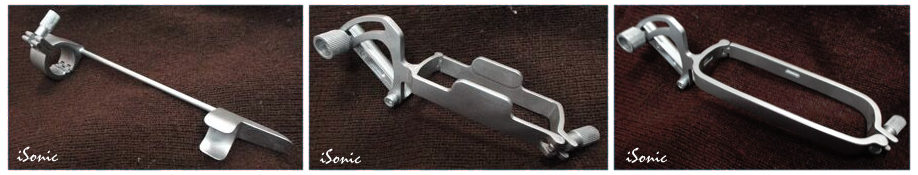

iSonic reusable needle guide offers surgeons free angle for needle insertion.
A easy-to-learn quick-release allows easy detachment of the device from the transducer providing physicians increased flexibility during procedures.

Needle separable from guide.

3-5 years lifespan.

Autoclave sterilization low temperature plasma disinfection ethylene oxide gas disinfection.

Product Advantage

Angle Type： Free-Angle

Available Angle：Free angle
