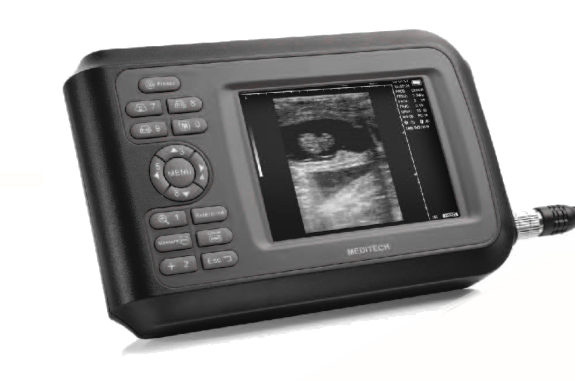

Product Features
Monitor: 5.5 inch TFT color LCD
Full digital beam forming technology
Gama correction histogram& Scanning angle adjustment
Display Mode: BB+B4BB+MM
Image magnification: ×1.0 ×1.2 ×1.5 ×2.0 times
4 focusing combination selectable
PAL-D output
Gray Scale: 256 levels
256 frames for cine-memory64 image permanent storage
Image Procession: DFS DRF RDA VGA/DSC and Image Post Procession
15 difference kinds of body marks with difference calipers.
Measurement in Distance Circumference/Area Time/Heart Rate/EF rate for heart and GS CRL BPD HC FL AC for OB/GY measurement and Gestational Age Fetal weight EDD calculation.
Characteristic showing in real-time clock ID Sex Age Focusing Info and Gain (Near Far Overall) info.
USB 2.0 For real-time picture uploading to PC
Scanning Method: Convex Micro-convex Linear rectal
Power supply: AC100-240v 50/60Hz DC: 16.8v rechargeable Lithium battery Capacity 180 minute continue working
Dimensions: 265mmx46mmx53mm
Weight: 700g.
Product Specifications
|
|
|
|
Probe |
linear probe
6.5MHz Rectal probe |
convex probe |
micro-convex probe |
|
Detect Depth(mm) |
≥80 |
≥140 |
≥90 |
Resolution
(mm) |
Lateral |
≤1 (Depth≤60) |
≤3 (Depth≤80)
≤5 (80＜Depth≤130) |
≤3 (Depth≤60) |
|
Axial |
≤1 (Depth≤80) |
≤1 (Depth≤80) |
≤1 (Depth≤60) |
|
Blind zone(mm) |
≤3 |
≤6 |
≤5 |
|
Geometric position precision |
Horizontal |
≤5 |
≤7.5 |
≤7.5 |
|
Vertical |
≤5 |
≤5 |
≤5 |
|
Monitor size |
5 inch |
|
Display mode |
B B+B B+M M 4B |
|
Image gray scale |
256 |
|
Image storage |
64 |
|
Cine loop |
≥400 frame |
|
Scan depth |
70 mm～140 mm |
|
Image flip |
Up/down left/right |
|
Focus position |
Adjustable |
|
posture mark |
16 |
|
Image Process |
Histogram Color encode GAMA Image Smoothen |
|
Probe Frequency |
Adjustable(3 point each probe) |
|
frame correlation |
Adjustable |
|
Measurement |
Distance circumference area volume heart rate. GAEDD |
|
Notation |
Date time name sex age hospital name、Full screen words edit |
|
output report |
Measurement |
|
Output |
USB2.0 VIDEO(PALD NTSC) |
|
Battery Continuous work |
≥2Hours |
Related Accessories
Standard:
Multi frequency convex probe ...... 1Pcs
Hard Case ................................... 1Pcs
Silicon Case ............................. 1Pcs
Power Adapter .......................... 1Pcs
Chargable Battery ....................... 1Pcs
Cleaning Cloth ............................ 1Pcs
Options:
7.5MHz high-frequency linear array probe
6.5MHz intra-cavity (trans-vaginal) probe
7.5MHz rectal probe
3.5MHz micro-convex probe
DC Car Charger
USB Cable
