Sonoview

Sonoview Full digital imaging Ultrasound Scanner with clear image Sonoview PC based, abundant functions ,
15 " color LCD screen ,Broadband multi-frequency probes,
3D Upgradable

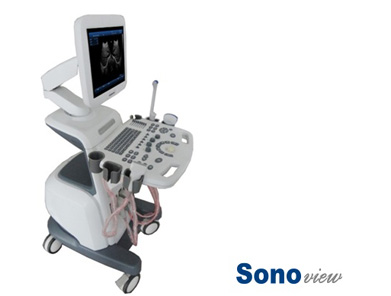

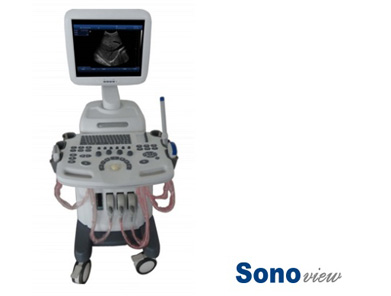

Trolley Ultrasound Scanner

Price: Contact Us

Product Features

15 " color LCD screen
Full digital imaging technology clear image
PC based abundant functions
Broadband multi-frequency probes
64 128 256 512 1024 frames (preset by user) cine loop

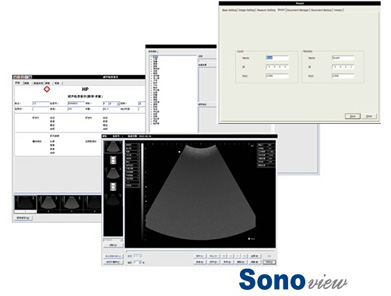

Built-in workstation software powerful function of information management and report
Complete application software packages enhanced measurement and calculation functions
Large capacity of local storage and USB storage
3D image function(optional)
Compatible with laser/inkjet printers
With pseudo-color display
Display depth: 240mm
Resolution Power: lateral 2mm longitudinal 1mm
Probe multi-frequency conversion: 5 segment frequencies
TGC adjustment: 8 TGC adjustments
Gray scale: 256
Scanning and display mode: B 2B B/M M 4B ZOOM; Real-time Zoom on B mode; 3D(optional)
Main probe: 3.5 MHz electronic convex array (frequency conversion)
Electronic focus: 4 focus of random combination
Image processing: Pre-processing after-processing dynamic range frame rate line average edge; enhancement Black/White inversion; Gray scale adjustment contrast brightness γ revision.
Image direction: Up/down/left/right
Pseudo-color function: 8 kinds
Magnification: 10 ratio 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0
Cine loop: 64 128 256 512 1024 frames (preset by user)

Standard configuration:
One mainframe unit (15 " color LCD screen)
One electronic convex array probe

Options:
7.5MHz high-frequency linear array probe
6.5MHz intra-cavity (trans-vaginal) probe
7.5MHz rectal probe
3.5MHz micro-convex probe
R/W DVD-ROM
Laser printer



Product Specifications

Display depth: 240mm
Resolution Power: lateral 2mm longitudinal 1mm
Probe multi-frequency conversion: 5 segment frequencies
TGC adjustment: 8 TGC adjustments
Gray scale: 256
Scanning and display mode: B 2B B/M M 4B ZOOM; Real-time Zoom on B mode; 3D(optional)
Main probe: 3.5 MHz electronic convex array (frequency conversion)
Electronic focus: 4 focus of random combination
Image processing: Pre-processing after-processing dynamic range frame rate line average edge; enhancement Black/White inversion; Gray scale adjustment contrast brightness γ revision.
Image direction: Up/down/left/right
Pseudo-color function: 8 kinds
Magnification: 10 ratio 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0
Cine loop: 64 128 256 512 1024 frames (preset by user)
Body markers: a variety of body markers (30 sorts)
Display information: date time medical records number magnification measurement value the body tag character notes coefficient of frame correlation scanning depth portfolio of probe type conversion in both English and Chinese full-screen character edit etc.

Measurement and calculation:
B mode: distance circumstance area volume angle ratio stenosis profile histogram;
M mode: heart rate time distance slope and stenosis;
Gynecology measurement: Uterus cervix endometrium L/R ovary;
Obstetric: gestation age fetal weight AFI;
Cardiology: LV LV function LVPW RVAWT;
Urology: transition zone volume bladder volume RUV prostate kidney;

Small parts: optic thyroid jaw and face.
DICOM3.0: medical digital imaging and communication is the industry standards (agreement) of image and data transmission among different kinds of medical devices. Ultrasound devices could receive images and data by DICOM after being connected to PACS.
System preset: System preset includes parameter presets of OB GYN vascular cardiac urology and small parts comments manufacture default settings system upgrade and maintenance settings.
Storage: large capacity of local storage and USB storage image and cine loop Measurement result and report can be stored.
Monitor: 14 " black-and-white SVGA progressive scanning display
Probe connector: 2
Terminal output: VGA PAL-D video output

Size: 790mm (length) × 660mm (width) × 1070mm (height)
Weight: about 50kg



Related Accessories

Standard:

Mobile trolley   .............................. 1Pcs
Multi frequency convex probe ...... 1Pcs
Power Cable  ............................... 1Pcs
Cleaning Cloth  ............................ 1Pcs

Options:

7.5MHz high-frequency linear array probe
6.5MHz intra-cavity (trans-vaginal) probe
7.5MHz rectal probe
3.5MHz micro-convex probe
R/W DVD-ROM
B/W Laser printer
